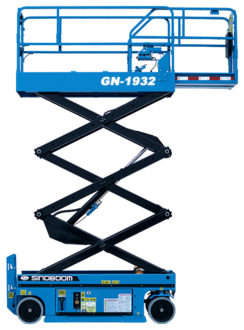

GN-1932 Scissor Lift

GN-1932 (Sinoboom GTJZ0608M)
– 7,8 m – working height
– 230 kg – lift capacity
– steel frame platform (1,64 m x 76 m)
Productivity
– Slid-out extension deck 90 cm (3 different levels of extension)
– Folding rails with half-height swing gate
– DeltaTech control system
– Platform control with battery charge indicator
– Rear recessed charger receptacle
– On- board diagnostic system
– AC power to platform
– Lanyard attachment points
– Emergency stop at both platform and ground controls
– Front wheel hydraulic dynamic braking
– Manual hydraulic brake release
– Manual platform lowering valve
– Swing-out comopnents trays
– Pathole guards
– Tilt level sensor with audible alarm
– Descent alarm
– Electronic horn
– Hour meter
– Flashing LED beacons
– Certified load sensor
– Telematics-Ready connector
Power
– 24 V DC – four 6V maintenance free batteries – 225 Ah
– Universal 20 AMP smart charger
Drive
– Hydraulic,dual front wheel drive
Tyres
– Solid non-marking

– Airline to platform
– Power to platform (inc. Plug, socket and ground fault interrupt leakage on request)
– Biodegradable hydraulic oil
– Maintenance free gel batteries
– Working lights on the platform
