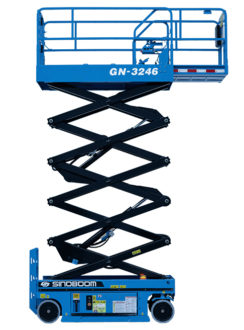

GN-3246 Scissor Lift

GN-3246 (Sinoboom GTJZ1012)
– 12.00 m – working height
– 320 kg – lift capacity
– steel frame platform – (2.25 m x 1.15 cm)
Productivity
– Slid-out extension deck 90 cm (3 different levels of extension)
– Folding rails with half-height swing gate
– DeltaTech control system
– Platform control with battery charge indicator
– Rear recessed charger receptacle
– On- board diagnostic system
– AC power to platform
– Lanyard attachment points
– Emergency stop at both platform and ground controls
– Front wheel hydraulic dynamic braking
– Manual hydraulic brake release
– Manual platform lowering valve
– Swing-out comopnents trays
– Pathole guards
– Tilt level sensor with audible alarm
– Descent alarm
– Electronic horn
– Hour meter
– Flashing LED beacons
– Certified load sensor
– Telematics-Ready connector
Power
– 24 V DC – four 6V maintenance free batteries – 240 Ah
GTJZ0808 (GN-2632)
– 24 V DC – four 6V maintenance free batteries – 300 Ah
GTJZ0812 (GN-2646)
– Universal 20 AMP smart charger
Drive
– Hydraulic,dual front wheel drive
Tyres
– Solid non-marking

– Airline to platform
– Power to platform (inc. Plug, socket and ground fault interrupt leakage on request)
– Biodegradable hydraulic oil
– Maintenance free gel batteries
– Working lights on the platform
