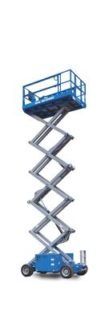

GS3369 Self-Propelled Scissor Lifts

Gizo Self-Propelled Scissor Lifts Genie GS 3369 DC

– working height maximum: 11.75 m
– platform height maximum: 9.75 m
– lift capacity: 454 kg
– drive: 2×4
– power source: 24 V (48V = 8 x 6V V 225 Ah)
– max platform occupancy (in/out):  4 / 4
– slide-out platform extension deck: 1.52 m
– length: 3.76 m
– width: 1.75 m
– weight: 3 623 kg
– tyres – solid non-marking

– AC sealed drive motors
– Folding guardrails with full height swinggate
– AC power to platform
– Active oscillating front axle
– Positive traction control
– Regenerative braking
– Tilt level sensor with audible alarm
– Certified load sensor
– Smart Link™ control system (joystick, 2 lift speeds & 2 selectable proportional drive speeds, user-friendly diagnostics)

– Air line to platform
– Biodegradable hydraulic oil
– Dual flashing beacons
– Motion alarm
– Low temperature cut-out module
– Power to platform (incl. plug, socket and ground fault interrupt leakage on request)
