genie

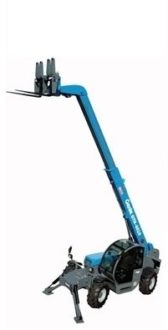

GTH4013 High Reach Rough Terrain Telehandlers

Gizo Ładowarka teleskopowa Genie GTH 4013

– Lifting capacity maximum: 4 000 kg
– Lifting height maximum:  12.99 m
– Forward reach maximum: 9.08 m
– Length at fork-holder plate: 6.06 m
– Width: 2.32 m
– Height: 2.40 m
– Weight: 10 100 kg

– 4 x 4
– 4 – wheel steer
– 3 steering modes
– Hydraulic line on boom
– Power assisted steering
– Front outriggers
– Hydrostatic transmission with variable displacement pump and motor
– Attachment holder plate –mechanical coupling
– Angle and length indicators on boom correspond to load charts
– Side mounted engine for easy access to components
– Oil immersed, multi-disc brakes on both axles
– Self activated parking brake hydraulically released
– Rear wheel alignment system
– Hydraulic inching by service brake pedal action
– Stability and load control system

– Floating forks L 1200 mm, section 120×50 mm
– FEM 3 plate and forks kit
– FEM 3 forks with hydraulic side-shift (+/-100 mm)
– 800 L loading shovel
– 500/800 L concrete bucket (manual or hydraulic discharge)
– 500 L concrete mixing bucket (full hydraulic)
– Brick-holder basket
– Fixed hook on plate
– 2 m mechanical extension jib, 2,000 kg capacity
– 4 m mechanical or hydraulic extension jib, 900 kg capacity
– 3 t hydraulic hoist
