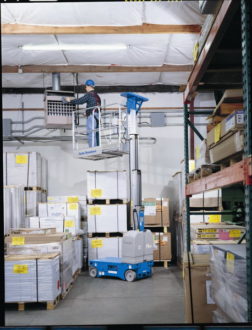

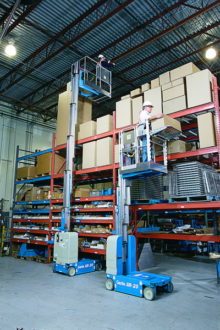

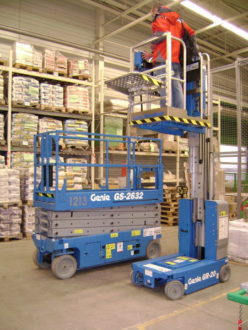

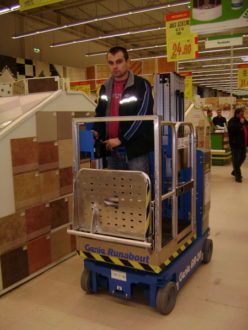

Genie GR20
Self-propelledast lift

Technical data

8.02 m

159 kg

1112 kg

See specification

– 8.02 – working height

– 6.02 – platform height

– 159 kg – platform load capacity

Equipment

– The steel extending platform with the dimensions of 89 x 75 cm in the folded position and 1.40 x 75 cm in the unfolded position

– Emergency lowering of the platform

– Low entry to the platform – 39 cm

– Compact base 75 cm x 1.35 (GR-12 GR-15)

– Ground clearance under the platform base 6.3 cm (in the folded position)

– Crane lifting lugs

– Forklift inlets for forklift truck transport

– Hinged lid at the back for easy access to allain electrical and hydraulic components

– Patented rigidast system

– Tool shelf (GR-12. GR-15)

– Smart Link™ control system (joystick. 2 lifting speeds. 2-selection proportional driving system. user-friendly diagnostics)

– Fully proportional drive and lift system

– 230V line fed to the platform (unprotected)

– Built-in diagnostic system

– Tilt sensor with audible alarm

– Zero-turning radius

– Dual brakes

– Hydraulic release brake

– Bumper protection

– Certified weight system in theachine platform

– Connection to Telematic system – preparation for GPSodule

Power supply

– 24 V DC – set of 4 6V acid batteries with an automatic loader 25 amp

– Battery charge level indicator

Wheels

– Solid. cast. non-marking grey

Options

– 51 cm – additional platform extension

– 51 cm – additional extension of the platform with a gate

– Protection of the 230V line supplied to the platform (plug. socket. residual current circuit breaker. electricaleasurements)

– Biodegradable hydraulic oil

– GPSodule – device providing information on location and operations

– Double warning lights

– Tube for fluorescent lamps

– Liftovement alarm

– Warning horn

– Module for cutting off the driving function while charging the batteries

– Maintenance-free AGM batteries. standard loader is suitable for both battery types
